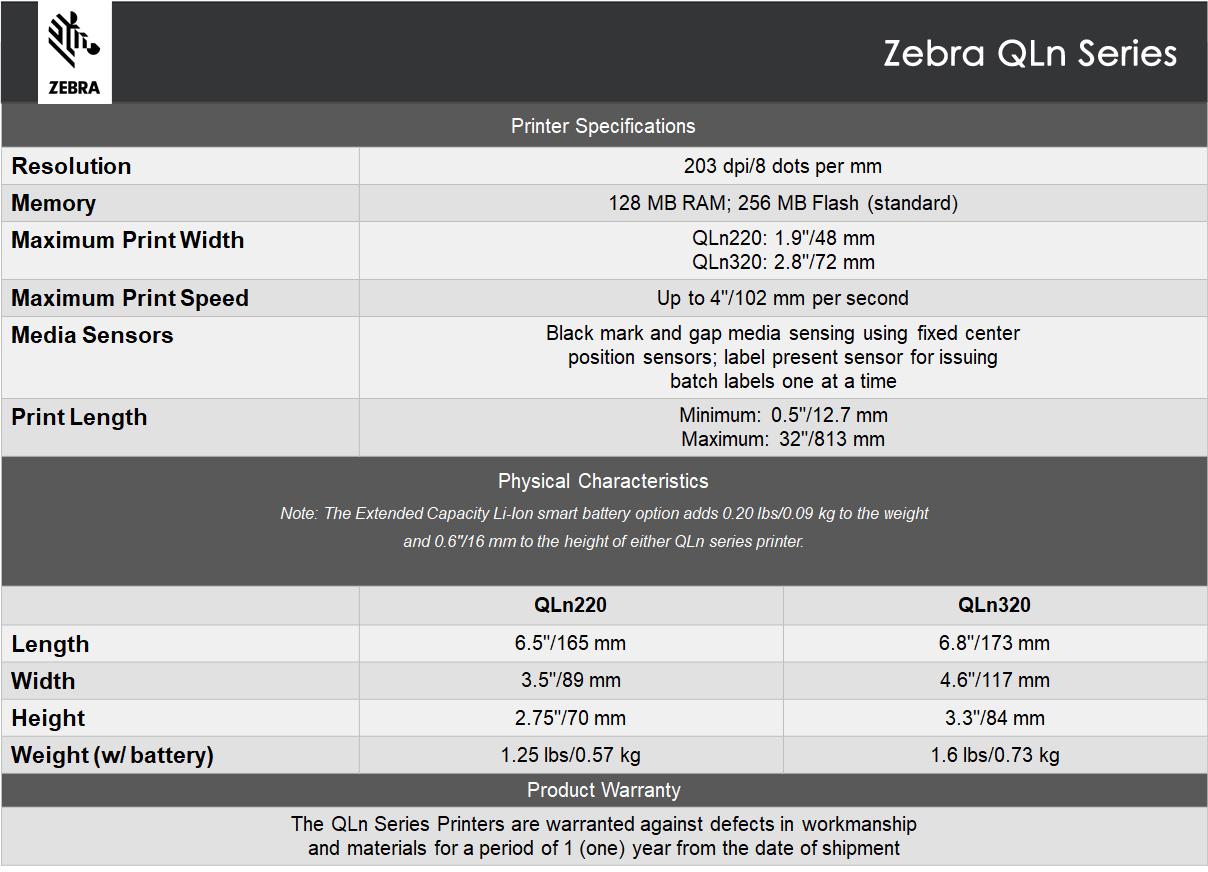

Zebra QLn Series Mobile Printer Specification






QLn Series Mobile Printer Features
  • Apple® iOS, Android, Windows Mobile and BlackBerry® connectivity

  • Direct thermal printing of barcodes, text and graphics

  • CPCL, EPL™ and ZPL® programming languages

  • 256 MB Flash supports downloadable programs, receipt formats, fonts and graphics (64 MB
         available for user storage)

  • 2450 mAh (nominal) 18.1 Wh removable, rechargeable PowerPrecision+ Li-Ion battery

  • Built-in battery charger


  • Serial and USB ports (both support strain relief)

  • Belt clip for unobtrusive and convenient printing (not compatible with extended capacity battery)

  • Black mark and gap media sensing using fixed center position sensors

  • Easy-to-use peel and present mode

  • Label present sensor for issuing labels one at a time

  • Tear bar for easy media dispensing

  • Center-loading media locking for variable roll widths

  • “Clamshell” design for easy media loading

  • Management: Mirror, SNMP, Web server, Profile Manager, AirWatch® and Wavelink Avalanche®

  • Large, easy-to-read LCD control panel (240 x 128 pixels)

  • LCD can be customized using WML (text and icons)

  • 5-way navigation buttons, two software defined keys

  • Printer alerts on the display, help menus

  • Tolerance of multiple drops from 5’/1.52 m to concrete

  • IP43 dust- and water-resistance rating (IP54 with soft case)

  • 400 MHz 32-bit ARM processor

  • XML support

  • Supports vertical and horizontal printing

  • Printers can be used in any orientation

  • QR barcode links to web-based help pages

  • Zebra Print Touch simplifies Bluetooth pairing and launches web-based help pages with Near Field
         Communication (NFC) enabled devices

  • Label odometer


  • NTP (Network Time Protocol) support via WiFi or Ethernet
