KanexPro 4K HDBaseT™ 1x4 Distribution Amplifier up to 230 feet (70m) Features



  • Broadcast one Input to four 4K UHD displays

  • Extend up to 70 meters over single CAT6

  • HDBaseT outputs supports PoE - No power supply needed on the receivers

  • Built-in DIP switch for EDID management

  • Bandwidth up to 10.2 Gbps

  • Supports computer video up to 1920x1200, including HDTV 1080p/60 & 4K@30Hz

  • Local HDMI output for monitor support

  • Daisy-chainable to up to 12 displays

  • Includes locking HDMI connectors

  • Control via RS-232 & IR loop-in

  • Firmware upgradeable via built-in USB

  • Rack mountable metal enclosure with rack ears

  • Backed by KanexPro's 3-Year full parts & labor warranty


  • Note: The Splitter does not include HDBaseT Receivers: HDBASE70POER receivers are ordered separately, please contact sales for more information.

    Applications:

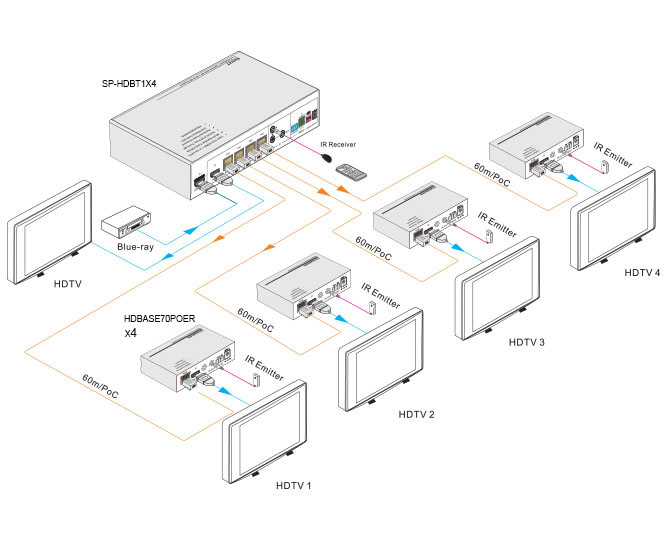

    Perfect for multi-screen classrooms or presentation rooms, retail showrooms, sports bars, and digital signage where you can route and distribute high resolution signals to several displays 230 feet from a remote based media player or PC.
