KanexPro 4K HDMI® Extender over HDBaseT 2.0 w/ USB 2.0 Features



  • Daisy chain, extend & control 4K video & audio at every 330 ft. up to 16 displays

  • Extend uncompressed, 4K HDMI video, RS-232 and stereo audio up to 330ft. on a single CAT6

  • Two addressable RS-232 ports on each repeater for controlling 2-displays

  • Supports 1080p and WUXGA video with stereo audio

  • Supports 4Kx2K@24, 30Hz, 50 & 60Hz

  • Built-in 1x2 HDMI distribution amplifier for 2-displays (mirrored)

  • Supports 4:2:0 sampling rate with HDR support @10 bit

  • Built in audio de-embedder via phoenix connector

  • Incorporates HDCP 2.2 w/ CEC pass-thru

  • CATx extension up to 330ft. (100m)

  • Conforms to the latest high speed specifications

  • Bi-directional control over RS-232

  • Front-panel & ethernet LED’s provides real-time I/O connection status

  • Universal RS-232 code compatible with any 3rd party control systems

  • Locking HDMI connectors & power supplies

  • Universal power supply for worldwide compatibility

  • Backed by KanexPro 3 Year Warranty


  • Applications:

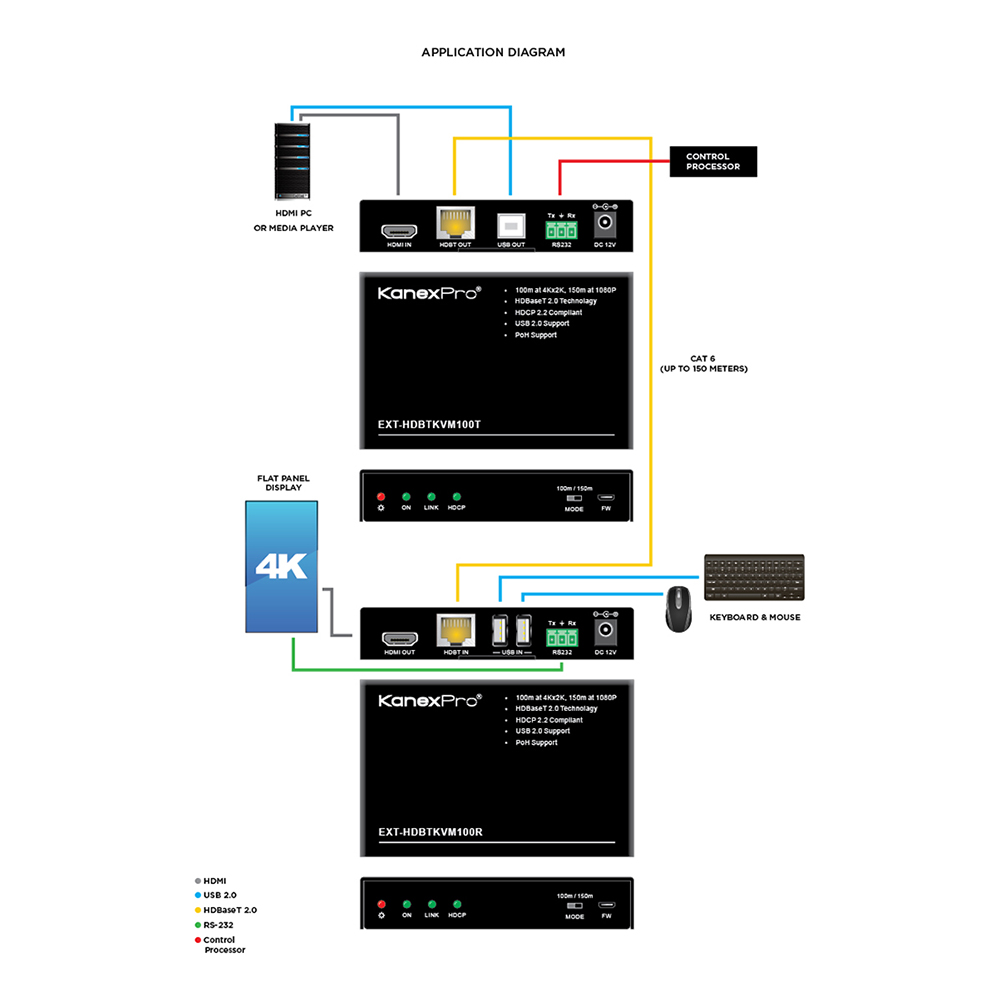

    USB for Conferencing in AV Perfect for conference rooms and boardrooms where the extender offers two USB interfaces allowing SOFTCODEC systems to be used for video conferencing and for use with PTZ cameras.

    Digital Signage with data diagnostics Ideal for applications such as Digital Signage where high-resolution video, audio and USB KVM function and data diagnostics can be sent back to the computer from the QSR display or vice versa.

    Please Note: This repeater requires a transmitter (Tx) part # HDBASE70POET for 70 meters or any HDBaseT transmitter for 100 meters to connect an HDMI source device, which can be remotely extended up to 330 feet over CATx cable to the repeater. It also works with our SP-HDBT1X4 Splitter for distributing to four HDBaseT outputs.
