KanexPro 4K HDBaseT™ 100m HDMI® Extender over 2.0 w/ USB 2.0 Features



  • Extend HDMI signals up to 330 ft. (100m) on single CAT6 cable

  • Supports Power over Ethernet from Tx or Rx

  • 4K x 2K@30Hz Ultra HD resolutions

  • Infrared Signal Input/Output, embedded over extension

  • Supports resolutions from 1080p/60@48bit

  • High bandwidth up to 10.2 Gbps

  • Enables 3D pass-through

  • Supports CEC pass-through

  • HDCP and EDID compliant

  • Audio support: Dolby TrueHD & DTS Master Audio, 7.1 compliant

  • Uncompressed audio support such as LPCM

  • Front panel-LEDs for link activity and HDCP authentication

  • Locking power suppy & HDMI connectors

  • One external power supply 24V DC included

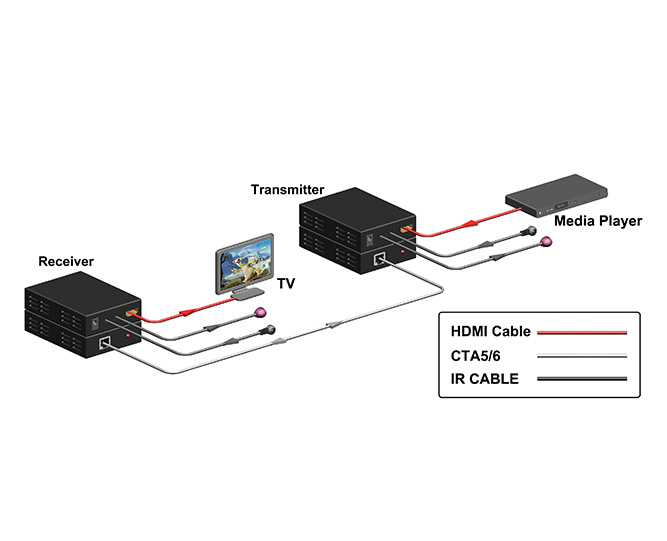

  • Please Note: This repeater requires a transmitter (Tx) part # HDBASE70POET for 70 meters or any HDBaseT transmitter for 100 meters to connect an HDMI source device, which can be remotely extended up to 330 feet over CATx cable to the repeater. It also works with our SP-HDBT1X4 Splitter for distributing to four HDBaseT outputs.
